Kordz PRO SlimCat™ Cat6 Network Cable

Kordz PRO SlimCat™ Cat6 Network Cable
Kordz PRO SlimCat™ Cat6 Network Cable - Imagen 2
Kordz PRO SlimCat™ Cat6 Network Cable - Imagen 3
Kordz PRO SlimCat™ Cat6 Network Cable - Imagen 4
Kordz PRO SlimCat™ Cat6 Network Cable - Imagen 5
Kordz PRO SlimCat™ Cat6 Network Cable - Imagen 6
Kordz PRO SlimCat™ Cat6 Network Cable - Imagen 7
Kordz PRO SlimCat™ Cat6 Network Cable - Imagen 8
Kordz PRO SlimCat™ Cat6 Network Cable - Imagen 9
Kordz PRO SlimCat™ Cat6 Network Cable - Imagen 10

Kordz PRO SlimCat™ Cat6 Network Cable

1,00 €

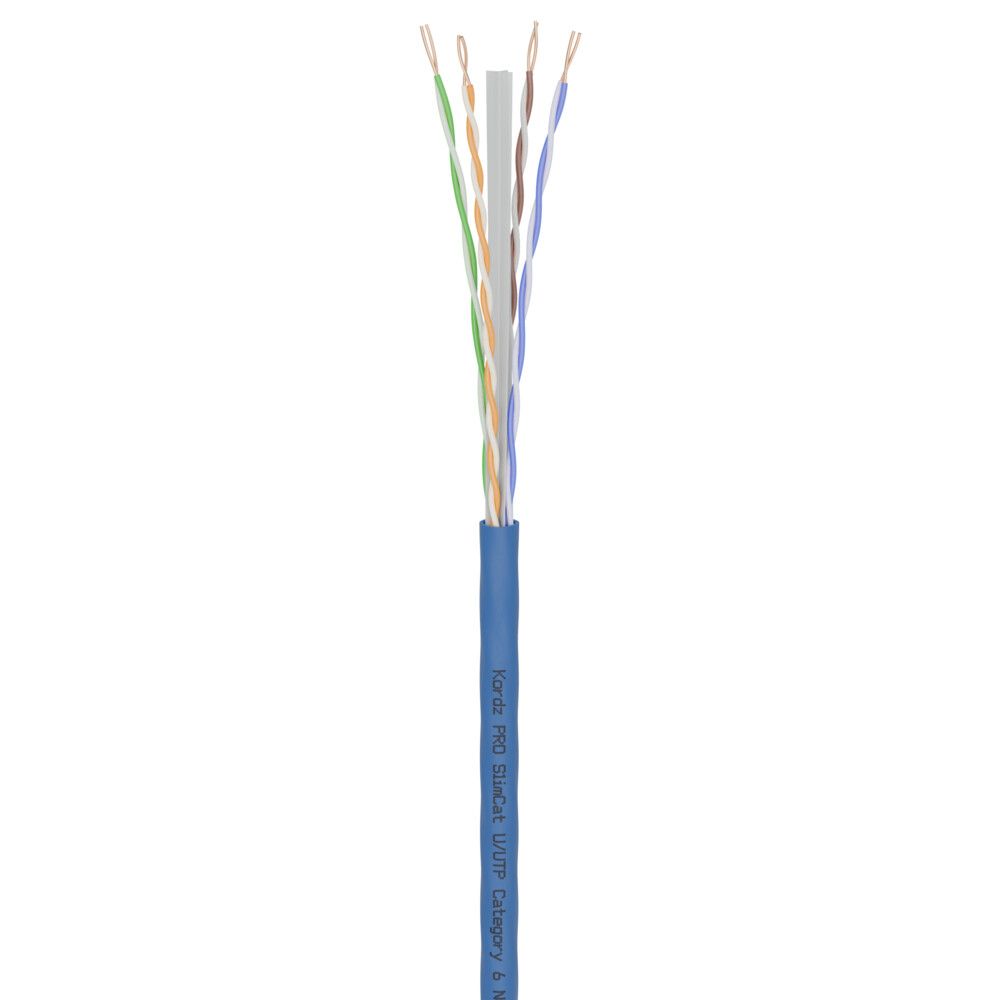

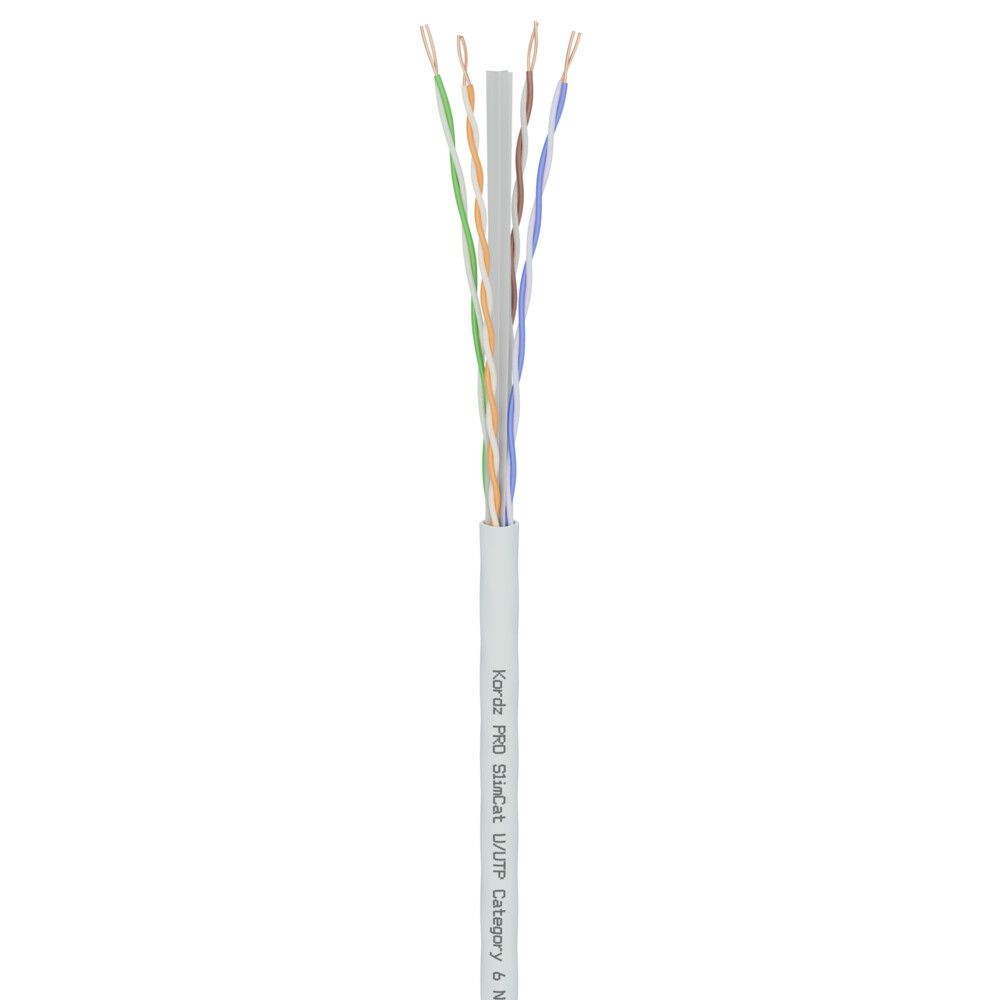

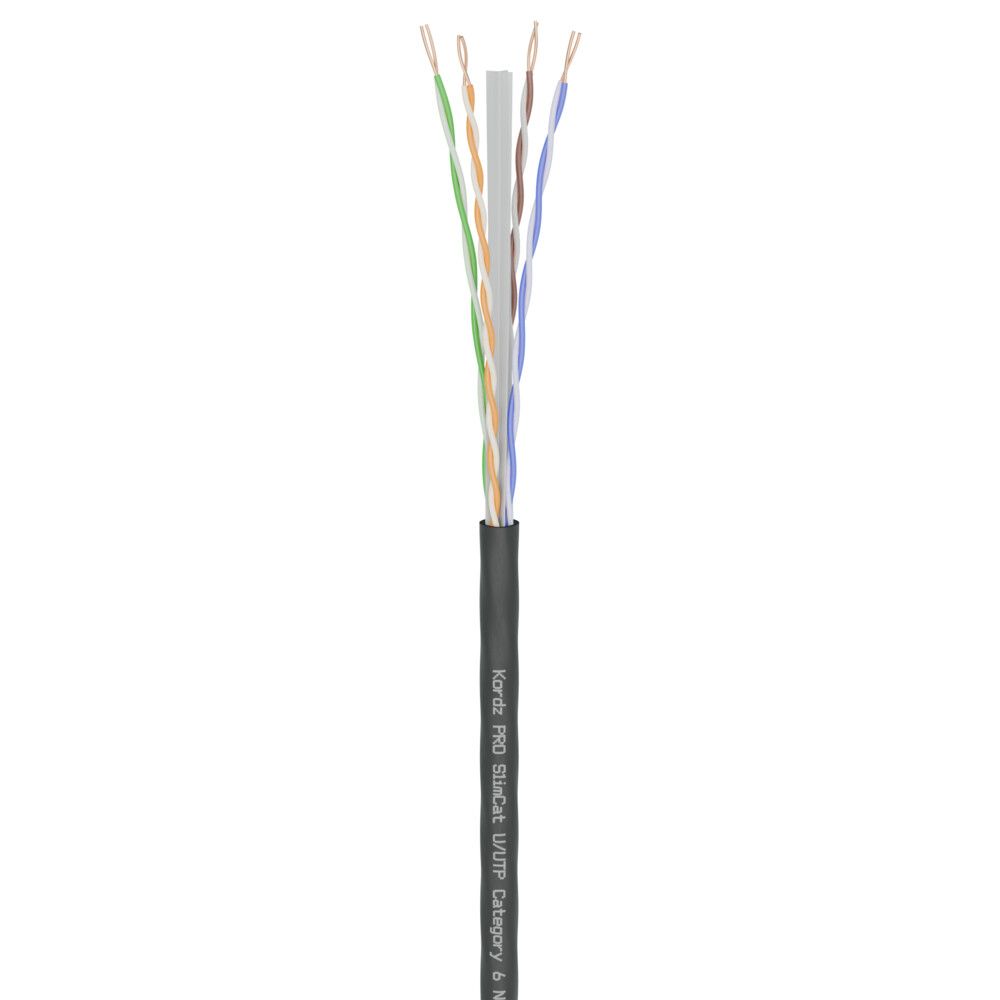

Professional-grade Kordz PRO SlimCat™ Cat6 U/UTP Network Cable is designed and engineered for systems integrators for high-density installations where routing space is limited and clean cable management matters. At just 4.0mm diameter, the slim profile reduces bundle bulk, making conduit and tray runs easier to pull and terminate. Solid 28AWG conductors support 1Gbps network connectivity up to 50m and IEEE 802.3bt PoE++ up to 100W, ensuring devices receive consistent power and network performance. Part of the multi-award-winning PRO SlimCat Cat6 Network System, this cable has been recognised by industry peers worldwide for its reliability and installation performance.

SKU: K23402 Categoría: Marca:

Características

  • CE Pro Top New Technology Award
  • Sound & Video Contractor’s Best of Show
  • Delivers ANSI/TIA-568.2-D Cat6 permanent link performance up to 50m, ideal for small and medium size installations
  • Space-saving U/UTP design, enabling reliable wired networks to the places other systems can’t reach
  • Reducing bundle sizes by almost half (cross-sectional area)
  • IEEE802.3bt 100W PoE++ capable
  • Simultaneous UL444 CM and CPR Dca fire rating for full compliance with US and EU safety requirements
  • Conveniently packaged in a Reel-in-Box delivery system that’s easy to identify in a van or on site
  • AS/NZS S008:2010 compliant
  • RoHS compliant
  • Kordz Lifetime Warranty

Technical info

CONSTRUCTION

Conductor: 28AWG solid OFC 0.338 +0/-0.02mm
Insulation: Polyethylene, 0.61±0.1 mm
Twisting: 4 Twisted pairs of conductors, not bonded
Twisted Pair Colour Code:  1: white / blue 2: white-orange / orange 3: white / green 4: white-brown / brown
Shielding: Unshielded (U/UTP)
Jacket Material: FRLSZH composite
Outer Diameter: 4.0 ± 0.5 mm

MECHANICAL

Minimum Bend Radius: Without load ≥ 16.0 mm; with load ≥ 32.0 mm
Temperature Range: During operation -20 °C to 60°C; During installation 0°C to 50°C

ELECTRICAL

DC Resistance: Max. 23.6 Ω/100 m at 20°C
Resistance Unbalance: Max. 4% at 20°C
Insulation Resistance (500V): Min. 5000 MΩ/km at 20°C
Mutual Capacitance: Max. 5.6 nf/100 m at 1 kHz
Capacitance Unbalance (Pair to ground): Max. 330 pf/100 m at 1 kHz
Nominal Velocity of Propagation: Nom. 67%
Test Voltage (DC, 1min): 1 kV / 1 min
