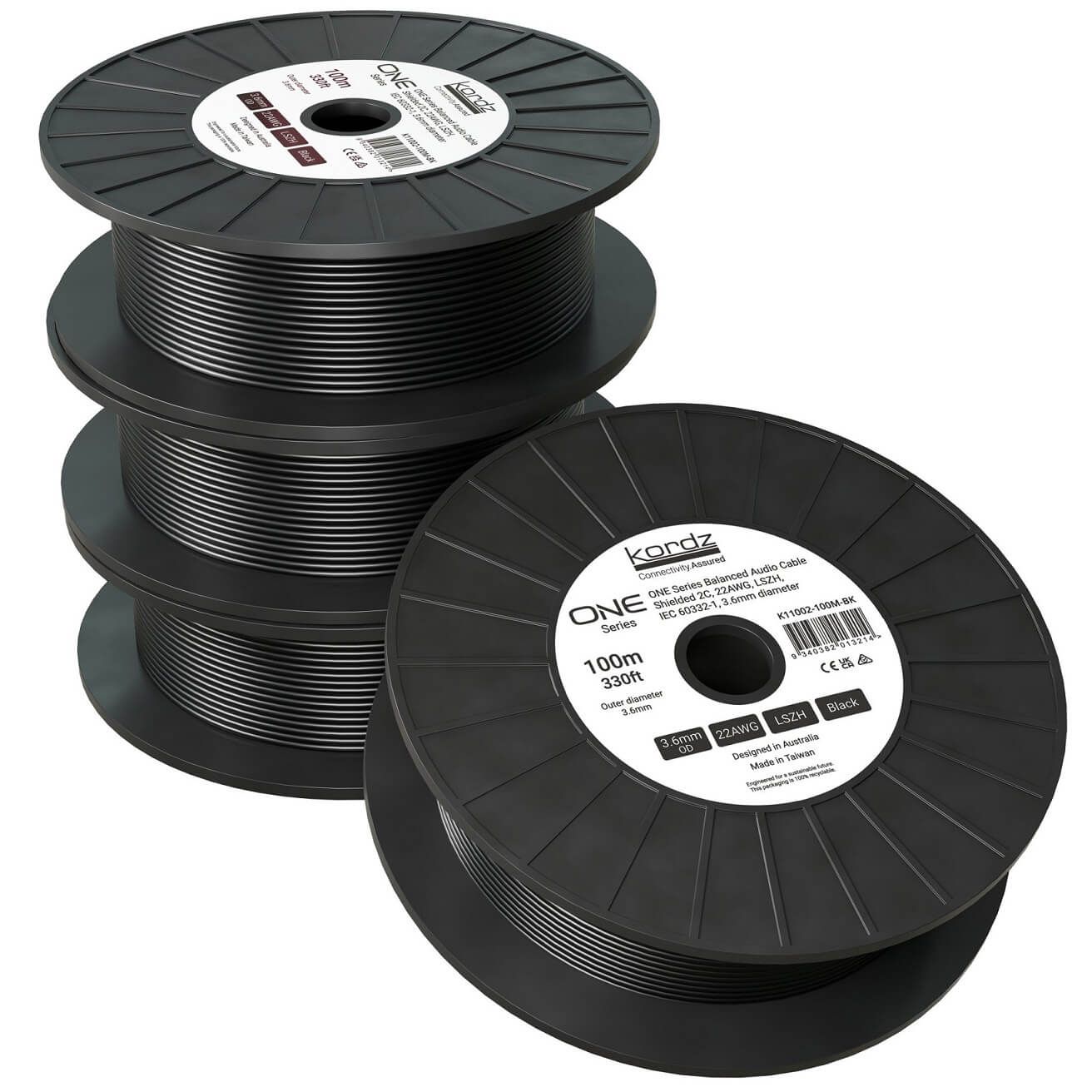

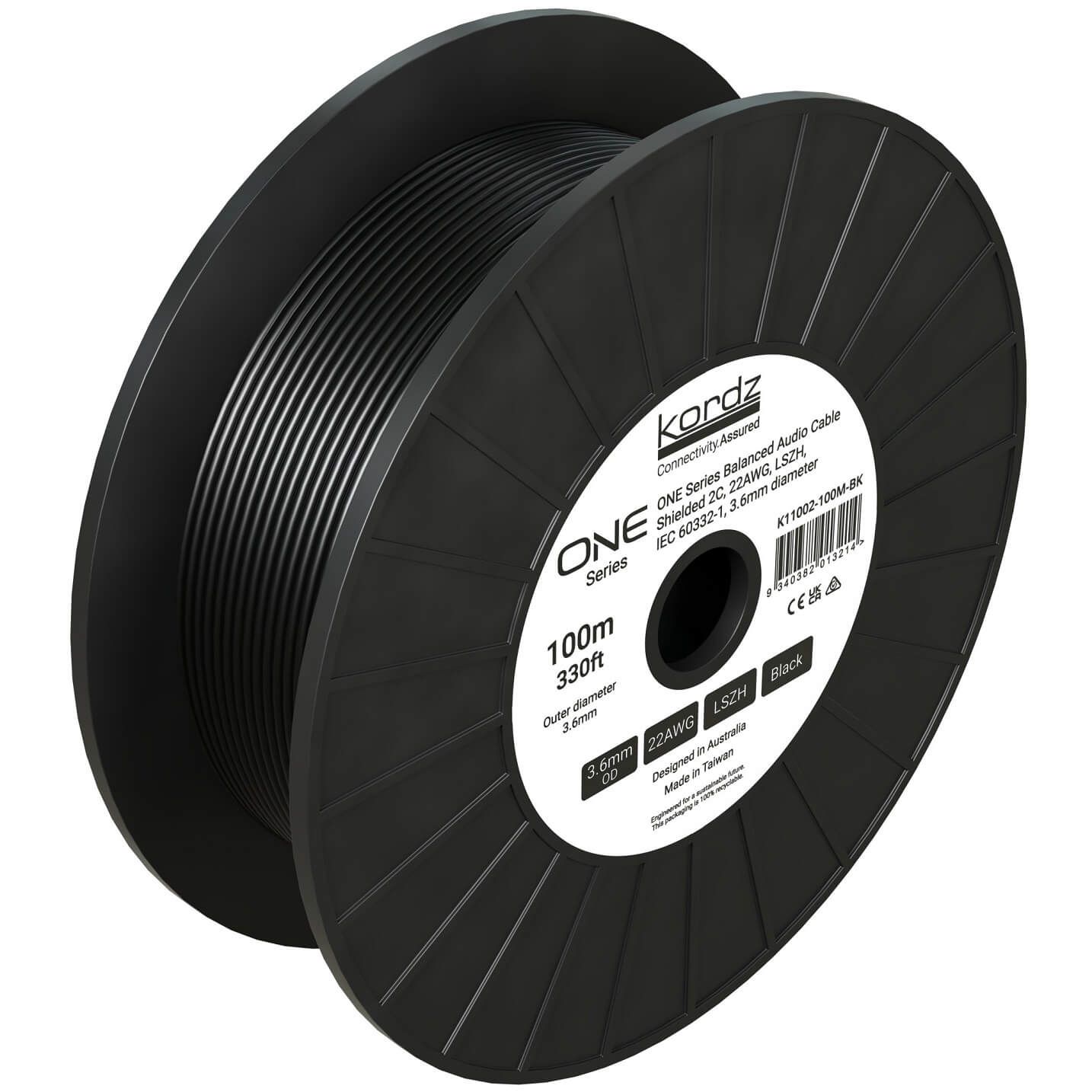

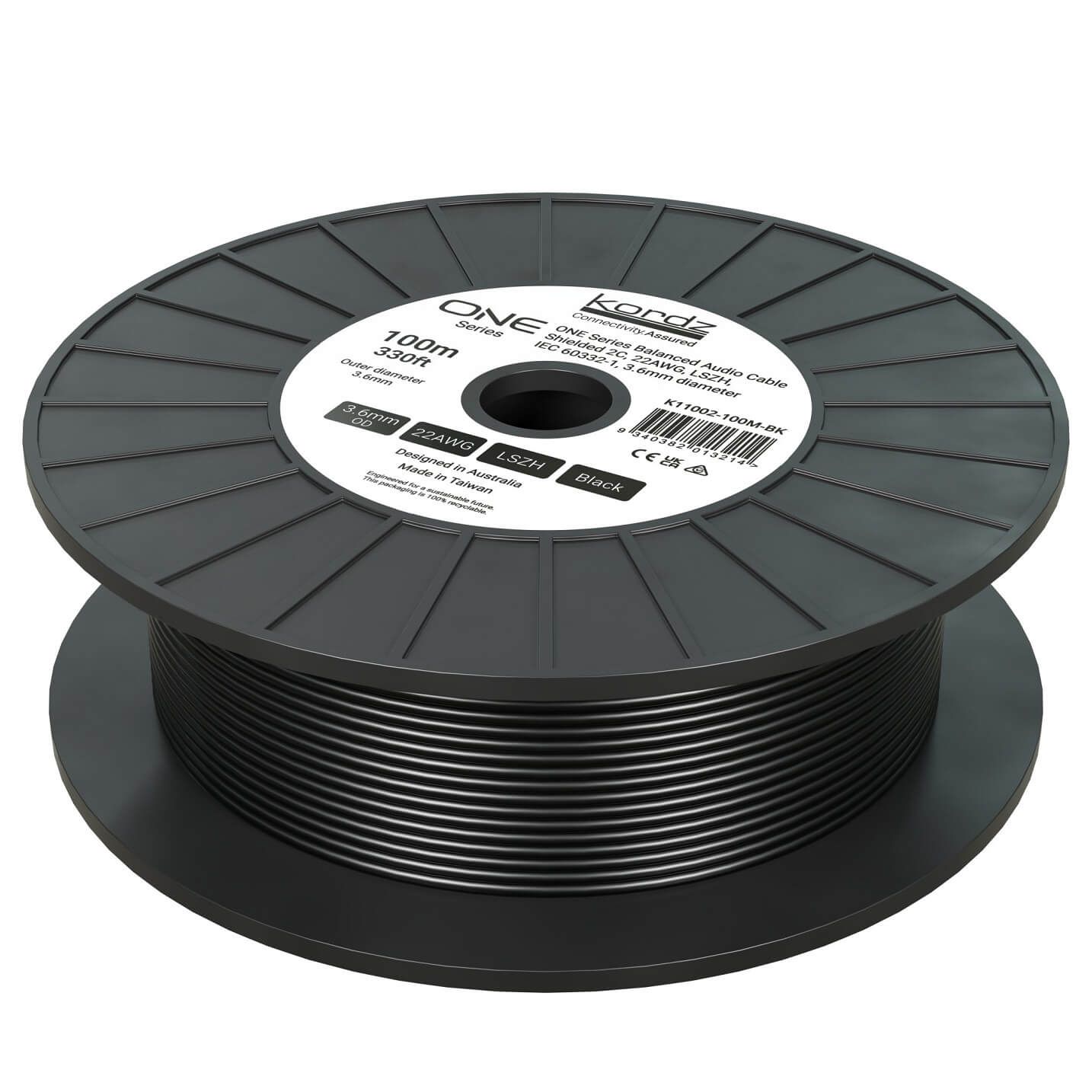

ONE Balanced Audio Cable 100m

ONE Balanced Audio Cable 100m
ONE Balanced Audio Cable 100m - Imagen 2
ONE Balanced Audio Cable 100m - Imagen 3
ONE Balanced Audio Cable 100m - Imagen 4
ONE Balanced Audio Cable 100m - Imagen 5
ONE Balanced Audio Cable 100m - Imagen 6

ONE Balanced Audio Cable 100m

1,00 €

The award-winning Kordz ONE Balanced Audio Cable is engineered to deliver robust audio performance in professional audio installations. It features high-purity stranded OFC conductors and a comprehensive aluminium foil shield for 125% coverage. This ensures minimal signal interference over extended distances. The cable’s installation-friendly design, coupled with an LSZH jacket, makes it ideal for versatile installations whether in-wall or exposed.

SKU: K11002-100M-BK Categoría: Marca:

Características

  • High-purity stranded OFC conductors for robust sound transmission
  • Comprehensive aluminium foil shielding for maximum interference protection
  • Foil shield and drain wire for simplified installation
  • Versatile LSZH jacket that’s ideal for various installation environments
  • Lifetime Warranty

Technical info

CONSTRUCTION

Cable Lay-Up: 2 cores (Black & Orange), shielded (foil + drain wire)
Primary Conductors: Stranded 22AWG OFC (19/0.16mm)
Insulation: Polyethylene (0.2 ± 0.05mm)
Drain Wire: Stranded 22AWG tinned OFC (7/0.250mm)
Shielding: Aluminium + PET foil, 125% coverage
Cable Jacket Material: LSZH composite material
Jacket Thickness: 0.5mm (nominal)
Cable Diameter: 3.6mm | 0.14in Ø
Operating Temperature: -20°C to +60°C

MECHANICAL

Cable Bend Radius: 36.mm | 1.4in
Max. Pull Tension: 20kg | 44lbs
